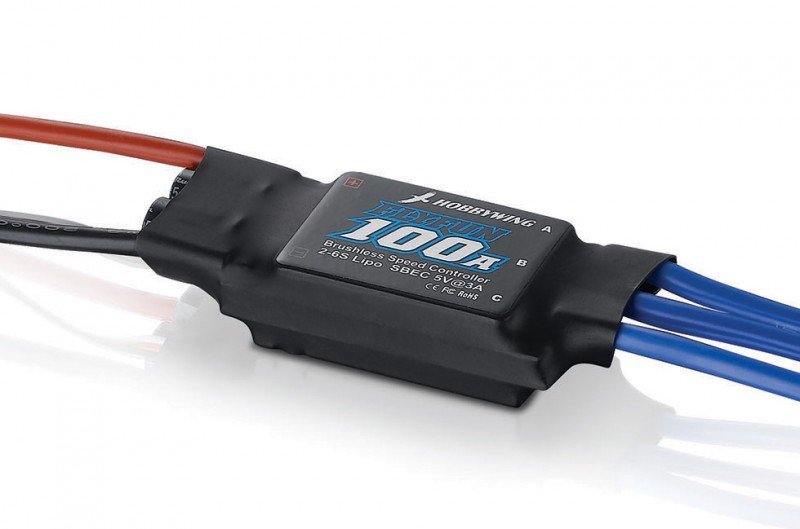

FlyFun 100A V4 - 80020650 HOBBYWING  [HW-80020650]

Great Performance

Imported elements although the PCB (printed circuit
board) with acutely low impedance utilized by FlyFun ESCs gurantee
great present stamina, good performance and high reliability.

Programmale Parameters

With a rich set of programmable parameters (via a Light-emitting Diode system
card/box), FlyFun ESC does connect with various aircraft (like fixed-wing,
heli, multirotor and etc.)

Several Protections

Multiple security features include abnomal input
voltage, ESC thermal, throttle indication loss (or Fail secure), and low voltage
cutoff efficiently prolongs the answer life linked to the ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Current : 100A/120A
• Input : 2-6S LiPo
• BEC production : Linear mode:5V,3A
• Output cables : Blue-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0 silver Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : maybe not Supported
• WiFi Module : maybe not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : perhaps not Supported

Size & Weight

• Size : 83.0x31.0x16.0mm
• Weight : 76g
