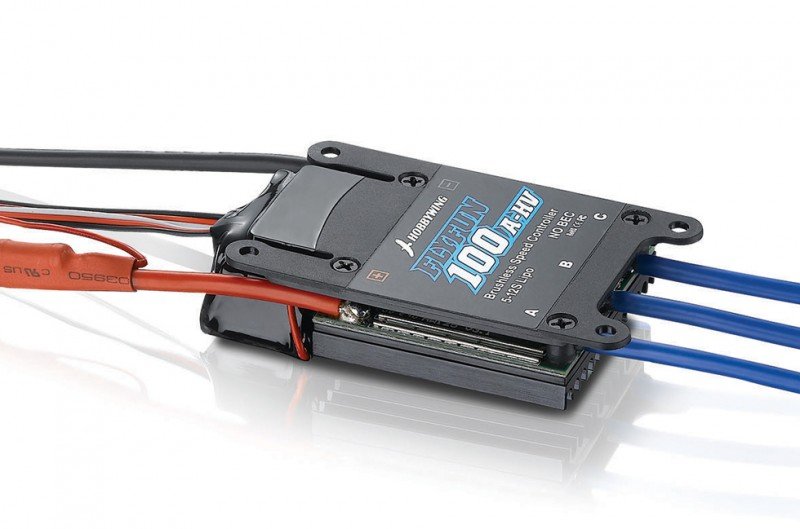

FlyFun 100A HV OPTO V4 - 80020530 HOBBYWING  [HW-80020530]

Great Performance

Imported elements besides the PCB (printed circuit
board) with acutely low impedance used by FlyFun ESCs gurantee
great present endurance, good performance and high reliability.

Programmale Parameters

With a rich couple of programmable parameters (via a Light-emitting Diode system
card/box), FlyFun ESC is applicable to various aircraft (like fixed-wing,
heli, multirotor and etc.)

Many Protections

Multiple protection features consist of abnomal input
voltage, ESC thermal, throttle indication loss (or Fail secure), and low voltage
cutoff effectively prolongs the right option is life by using this ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : HV

Specifications

• Cont./Peak Present : 100A/120A
• Input : 5-12S LiPo
• BEC manufacturing : No
• Output cables : Blue-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : maybe not Supported
• WiFi Module : not Supported
• Program Port : specific system Wire

Firmware

• Firmware Upgrade : not Supported

Size & Weight

• Size : 88.0x55.0x18.0mm
• Weight : 112g
