EzRun MAX6 - 30105000 HOBBYWING  [HW-30105000]

Tall Reliability & Durability

Built many loaded in tough and top-quality elements and alongside
cutting-edge firmware, the EZRUN MAX6 can deliver unmatched energy
and satisfaction probably the numerous hardcore of rushing applications, it's also
responsive adequate to shield it self from harm considering overloading as a result of genuine
punishment, overuse and/or people error.

Great Flexibility & Versatility

With amazing acceleration abilities and a rock-solid, stable
manufacturing, the MAX6 are designed for instant full-torque start-ups for
wheelies, high-speed rushing on straightaways and powering
through bumpiest area. Someone could have your choice of
adjusting the ESC parameters just before their choice and capability.

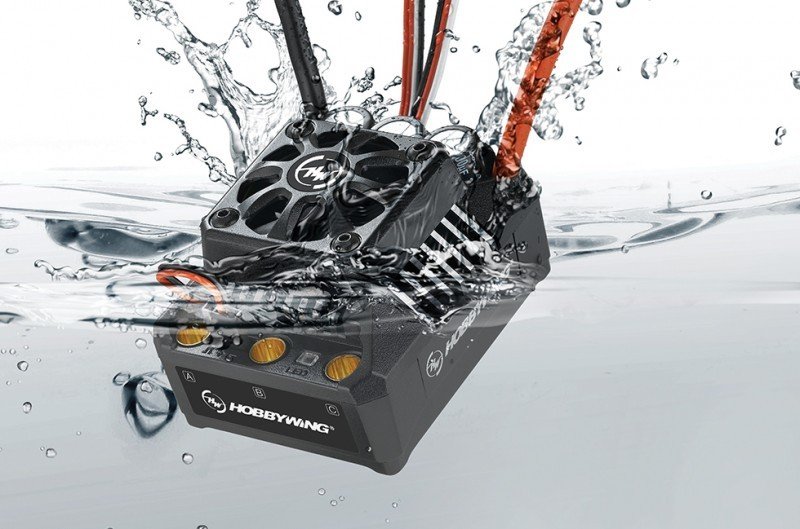

Relevant to All Weather Conditions

The waterproof and dust-proof design enables the MAX6 be current many environment
conditions without problem of harm caused on ESC from water or dirt.

Tall Voltage incorporated BEC

The MAX6 has utilized the world’s 1st HV integral BEC with a manufacturing present totally to 25Amp and a switchable production voltage of
6V-7.4V. The high voltage BEC is designed to handle today’s high
voltage servos on need utilized by major cars.

Advanced and Secure
Electronic Switch

The MAX6 features a power electronic switch with a lifespan of over
50000 on/off rounds, housed in a totally waterproof,
dust-proof and shock-resistant design.

Regular Firmware Updates
without Charge

You can update the MAX6 using the Hobbywing USB
LINK computer software, a multifunction LCD system field and a mobile computer.
Hobbywing updates its ESC firmware frequently providing you with
upgraded features more frequently whenever available.

Included Anti-Spark System

The MAX6 is initiated with interior anti-spark circuitry that protects not just power packs connectors
from damage but aids in preventing genuine harm as a result of burnt fingers from unavoidable
problem of sparking whenever developing the ESC to raised voltage battery pack packages (5S/6S/7S/8S).

Amount of Applications

MAX6 Applications:
This ESC is relevant to different 1/6^th & 1/7^th scale cars such as the Traxxas XO-1, including
suitable to various 1/8^th scale hefty vehicles like the CEN GST-E. It's your best selection for
high-end aggressively driven builds.

Item Specification

Type

• Scale : 1/6^th、1/7^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Waterproof : WP

Specifications

• Cont./Peak Present : 160A/1050A
• Input : 3-8S LiPo/9-24 Cells NiMH
• BEC manufacturing : modification Mode:6V/7.4V,6A

Wires & Connectors

• Input Wires : Red-10AWG-200mm*1/Black-10AWG-200mm*1
• Output cables : Black-10AWG-200mm*3
• Input Connectors : No
• Output Connecotors : 6.5mm Famale silver Connectors (pre-soldered in regards to the PCB)

Fan

• Size : 35.0x35.0x10.0mm
• Voltage Amount : 5-7.4V
• Powered by : running on BEC

ESC Programing via

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : FAN/Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 70.0x56.0x46.5mm
• Weight : 240g

Applications

• Motors : SL BL Motors/SD BL Motors(just in SL mode)
• Vehicles : 1/6^th、1/7^th Touring Car/Buggy/Truck
• KV Rating/T Count : 6S LiPo: KV≤1500/8S LiPo: KV≤1200(5892 Size Motors)
